PVC Film Printing Machine: Features, Benefits, and How to Choose the Right Model

A PVC film printing machine is the production “engine” behind decorative and functional films used on furniture panels, doors, cabinets, skirting, wall surfaces, and many other applications. Whether you print wood grain, marble, solid colors, textile textures, or branded patterns, the right machine improves color consistency, reduces waste, and keeps delivery times stable—especially when you’re producing multiple SKUs for export markets.

This guide explains key features, practical benefits, and a step-by-step method to choose the right model for your product mix—covering both decorative and industrial PVC film requirements such as durability, low odor inks, and stable adhesion for lamination.

Quick takeaway: Choose the machine based on film type (calendered vs. composite), surface finish (gloss/matte/embossed), ink system, and curing method—then verify it can hit your required width, speed, registration accuracy, and QC traceability.

1) What a PVC Film Printing Machine Does (and Why It Matters)

In simple terms, a PVC film printing machine transfers ink onto a PVC film substrate and cures it to create a stable, abrasion-resistant pattern or color layer. The printed film is then commonly used for lamination (onto MDF, PVC boards, metal panels, or other bases), wrapping, or self-adhesive applications.

What makes PVC film different is that it can be produced in many structures and surfaces—transparent, matte, glossy, embossed, pearl, anti-static, self-adhesive, and more. A good printing system must therefore handle:
ink wetting, surface energy, dimensional stability, heat sensitivity, and the final application environment (kitchen oil, bathroom humidity, UV exposure, cleaning chemicals).

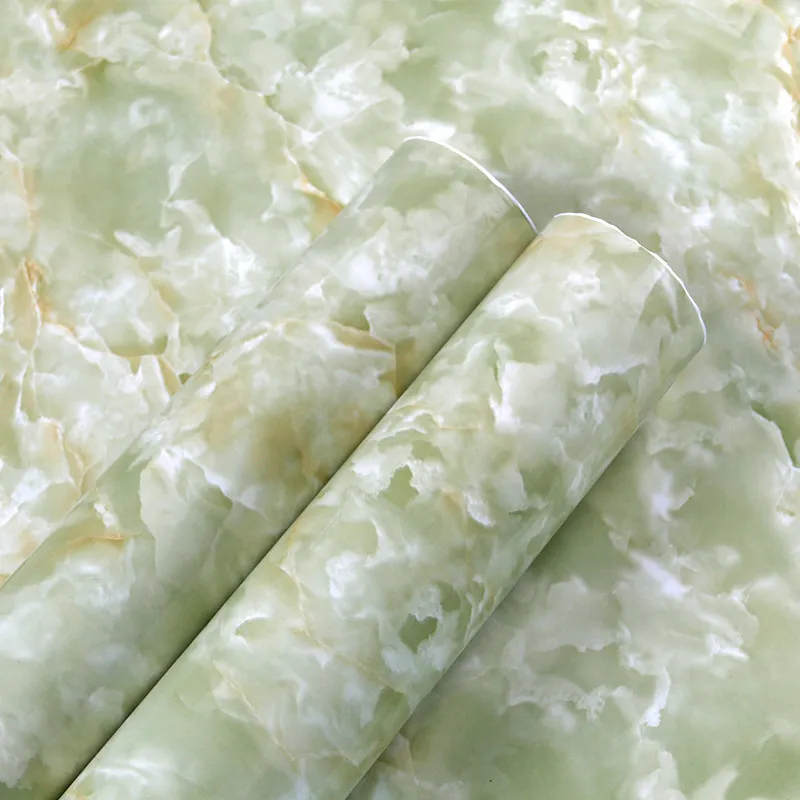

Decorative printing: wood grain, marble, stone, fabric, metal textures, 3D effects.
Functional printing: protective layers, anti-static markings, brand/traceability codes, special coatings compatibility.
Production outcomes: stable color, sharp detail, low scrap, repeatable batches, predictable lead time.

2) Common PVC Film Substrates You’ll Print On

Your substrate dictates the machine configuration more than most buyers expect. Thickness range, film “stretch” behavior, and surface finish affect tension control, ink transfer, and curing.

Typical substrates and what they imply

Calendered PVC film: often used for decorative surfaces and lamination; requires consistent tension and smooth web handling.
You can review examples of Calendered Film.
Embossed / textured films: need stable impression control and careful ink/doctor blade settings to avoid mottling on peaks/valleys.
Soft-touch / matte surfaces: require ink systems designed for low-gloss uniformity and rub resistance.
Self-adhesive PVC film: the printing/curing process must avoid adhesive migration and maintain peel performance.
Composite structures (multilayer): require stable drying/curing profiles to prevent shrinkage and registration drift.

3) Key Features to Evaluate (Beyond “Speed”)

Two machines can share the same nominal speed but perform very differently in real production. Evaluate features that protect your repeatability, QC stability, and total cost per meter.

3.1 Printing technology: gravure, flexo, digital (hybrid)

Most PVC decorative films are produced with gravure due to high detail, rich layers, and consistent long-run output. Flexo can be cost-effective for certain patterns and faster changeovers, while digital can excel in sampling and short runs (but may require more careful cost control for large volume).

Tip (✔):
If your business depends on frequent pattern launches (e.g., seasonal furniture surfaces), consider a setup that supports fast cylinder/plate change, recipe-based color management, and quick cleaning to reduce downtime.

3.2 Web handling and tension control

PVC can shrink or stretch depending on heat, tension, and thickness. A robust machine should include stable unwinding/rewinding, edge guiding, and closed-loop tension control to keep registration stable across multiple colors.

Automatic web guiding: reduces edge wander, improves roll quality for slitting/lamination.
Low-tension capability: protects thin films and minimizes stretch marks.
Stable rewind hardness control: prevents telescoping and makes downstream converting smoother.

3.3 Ink compatibility and eco/safety expectations

Many buyers now demand eco-friendly, non-toxic inks and compliance with standards such as REACH/RoHS. Your machine should support the ink system you plan to use (solvent-based, water-based, UV, or specialty systems), and include ventilation, solvent recovery (if needed), and safe curing modules.

What to confirm with suppliers

● Can the machine achieve your required low odor level for indoor decoration?

● Does it support stable curing without overheating the PVC (avoiding shrinkage and distortion)?

● Are there built-in controls for viscosity, temperature, and drying power to keep color consistent batch-to-batch?

3.4 Registration accuracy and color consistency

For patterns like wood grain and marble, even small registration drift becomes visible—especially on large cabinet doors or wall panels. Look for systems that support:
automatic register control, stable cylinder mounting, and color management workflows (including spectrophotometer-based standards if your clients demand strict matching).

3.5 Inline inspection and traceability

Inline camera inspection, defect marking, and batch traceability reduce claims and rework. If you export or serve large OEM customers, these functions can be a deciding factor because they support repeatable quality across seasons and factories.

4) Benefits of the Right PVC Film Printing Machine

Buying “enough machine” is rarely optimal. The right model should deliver measurable business gains, not just a faster line speed.

Core benefits you can quantify

Lower waste rate: fewer start-up meters, fewer color-shift rejects.
Higher yield on long runs: stable tension and curing improve pass rate.
Better customer acceptance: consistent gloss/matte, sharp detail, accurate repeat length.
Faster delivery: shorter setup times and reduced rework.
More product flexibility: supports multiple finishes and functional coatings.

If you supply films for furniture and interior décor, these benefits translate into fewer complaints about color mismatch between batches or between different material lots. For example, when producing Wood Grain Film for cabinet lines, stable registration and controlled drying are critical because end-users can easily notice repeating artifacts or tone shifts under indoor lighting.

5) How to Choose the Right Model: A Practical Checklist

Use the checklist below to narrow options quickly and avoid mismatched configurations. The goal is to match machine capability to your product portfolio and order structure (many SKUs vs. long runs).

5.1 Define your film portfolio and target industries

List your top 10 products by volume and margin. Are you producing furniture wraps, wall surfaces, skirting films, floor films, or specialty functional films? Each has different durability expectations (scratch resistance, cleaning chemicals, humidity).

Examples of product direction

✓ Interior trim and finishing: PVC skirting film often requires consistent color and scuff resistance.

✓ Wall décor and renovation: clean color blocks and texture consistency for solid color wallpaper.

✓ Premium decorative effects: layered depth and tactile feel for 3D silk texture film.

5.2 Confirm width, thickness, and roll format

Choose a machine width that covers your current orders and near-future expansion. Don’t forget trimming and edge defects; you may need extra usable width. Also confirm the thickness range and the maximum unwind/rewind diameter to match your slitting/packing workflow.

Working width: match the most common laminate board widths and optimize yield.
Thickness range: ensure stable web handling for thin films and enough rigidity for textured films.
Roll diameter: larger rolls reduce changeovers but require stable tension and rewind control.

5.3 Match curing/drying to PVC behavior

PVC is heat-sensitive: too much heat can cause shrinkage, curl, or surface changes that affect lamination. Your machine’s drying/curing system should provide uniform energy, precise temperature control, and enough exhaust capacity (especially for solvent inks).

Production caution (⚠):
If you see shrinkage-related registration drift, the issue is often not “bad printing” but drying imbalance or tension + heat interaction. Ask for a curing profile test on your target film thickness and finish before finalizing the model.

5.4 Decide how many colors/stations you truly need

More stations enable richer patterns and smoother gradients but increase setup time and complexity. Align station count with your core products:
wood grain and marble designs often require multiple layers for depth; solid colors may not.

5.5 Prioritize changeover efficiency (if you run many SKUs)

If your orders are diverse—different patterns, widths, and finishes—your profit is strongly tied to changeover time. Features that matter include fast cleaning, quick mounting systems, and recipe storage for tension/drying/viscosity settings.

5.6 Plan quality control: what to test, when to test

A reliable line supports consistent QC from raw material to finished roll. At minimum, confirm the production system can maintain:
thickness stability, ink adhesion, surface appearance, color delta control, and roll packing integrity for shipping.

QC points to include in your acceptance test

Adhesion (cross-hatch / peel evaluation relevant to lamination use)
Rub & scratch resistance (dry/wet rub depending on end-use)
Color consistency (same pattern across rolls and across production days)
Gloss/matte uniformity (especially for large visible surfaces)
Odor & VOC (for indoor decorative markets)

6) Real-World Selection Scenarios (Choose Based on Your Goal)

Scenario A: High-volume furniture décor with stable designs

If you run long orders of repeat patterns for cabinet doors and panels, prioritize high stability and high efficiency:
strong tension control, reliable drying, durable mechanical build, and consistent registration at sustained speeds.

Scenario B: Many SKUs, frequent pattern updates (OEM/ODM)

If your business wins through customization—color matching, pattern personalization, special packaging—then a slightly lower top speed may be acceptable if you gain fast changeovers, repeatable recipes, and easy cleaning. This is especially relevant when producing short runs for customer sampling, interior renovation projects, or region-specific designs.

Scenario C: Premium textured or 3D decorative films

Premium textures demand precise impression control, stable curing, and careful ink selection to preserve tactile feel. Focus on web handling that avoids emboss damage and supports consistent coating weight on textured surfaces.

7) Supplier Capability Checklist (What to Ask Before You Buy)

A machine is only as dependable as the supplier’s ability to support installation, process tuning, and long-term spare parts. Use the questions below to screen partners.

Supplier questions that prevent costly surprises

1) Can you run a trial print on my target PVC film type and thickness?

2) What’s the guaranteed registration tolerance at my target speed?

3) Which ink systems are validated for low odor and indoor décor?

4) What spare parts are recommended for the first year (doctor blades, rollers, sensors)?

5) Do you provide remote support and on-site commissioning/training?

If you are building an integrated workflow—from film making to printing to slitting and packing—also evaluate how well the supplier supports end-to-end process control. Full-process producers typically optimize quality while reducing lead time, because parameters are managed consistently across stages.

8) Operating Tips to Keep Print Quality Stable

Even the best machine needs disciplined operation. The following practices usually deliver the fastest improvement in stability and yield.

Daily/weekly best practices

Standardize ink viscosity and record it by job (avoid “operator feel” variability).
Lock drying settings for each film thickness; adjust gradually to prevent shrink-related drift.
Control tension through startup, acceleration, and steady-state; avoid sudden changes.
Clean critical contact parts (rollers/doctor systems) on schedule to prevent streaks and pinholes.
Document QC data (color delta, gloss, adhesion) to catch trends early.

9) Common Mistakes When Buying a PVC Film Printing Machine

Most purchasing mistakes are not about price; they come from mismatched expectations between product requirements and machine configuration.

⚑ Overbuying speed, underbuying stability: speed is useless if registration and curing drift under real production conditions.
⚑ Ignoring substrate variety: a model that runs glossy calendered film well may struggle on textured or composite films without upgrades.
⚑ Weak changeover planning: frequent SKU changes can destroy throughput if cleaning and setup are slow.
⚑ No acceptance criteria: without a clear test protocol (adhesion, rub, odor, color), commissioning becomes subjective and risky.

10) FAQs (3–5 Common Questions)

Q1: What’s the difference between printing on calendered PVC film vs. other films?

Calendered PVC film is widely used for decorative lamination and needs stable tension and controlled drying to prevent shrinkage and registration drift. Textured or multilayer films may require more careful impression and curing control.

Q2: How do I choose between solvent, water-based, and UV ink systems?

Choose based on your target market’s odor/VOC requirements, the desired rub resistance, and your plant’s safety/environment setup. Your machine must be configured for the chosen curing and ventilation needs.

Q3: What specs matter most for decorative patterns like wood grain or marble?

Focus on registration accuracy, tension stability, and color consistency. Decorative films are judged visually under indoor lighting, so small shifts can be noticeable on large surfaces.

Q4: Can a single printing line handle multiple finishes (glossy, matte, embossed)?

Often yes, but confirm the line’s web handling and curing range match each finish. Embossed and soft-touch surfaces may need more precise pressure and drying control to maintain texture and feel.
</
